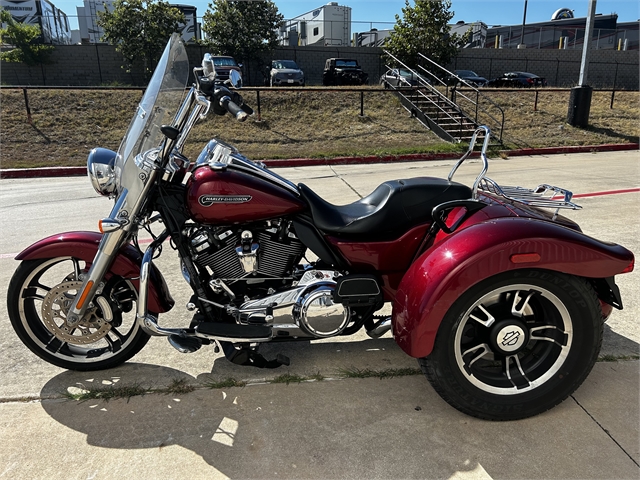

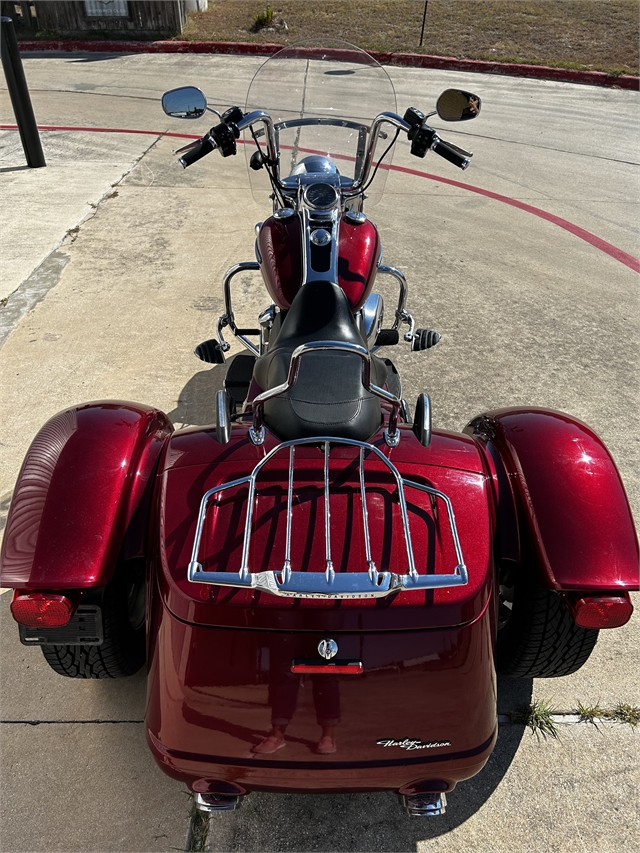

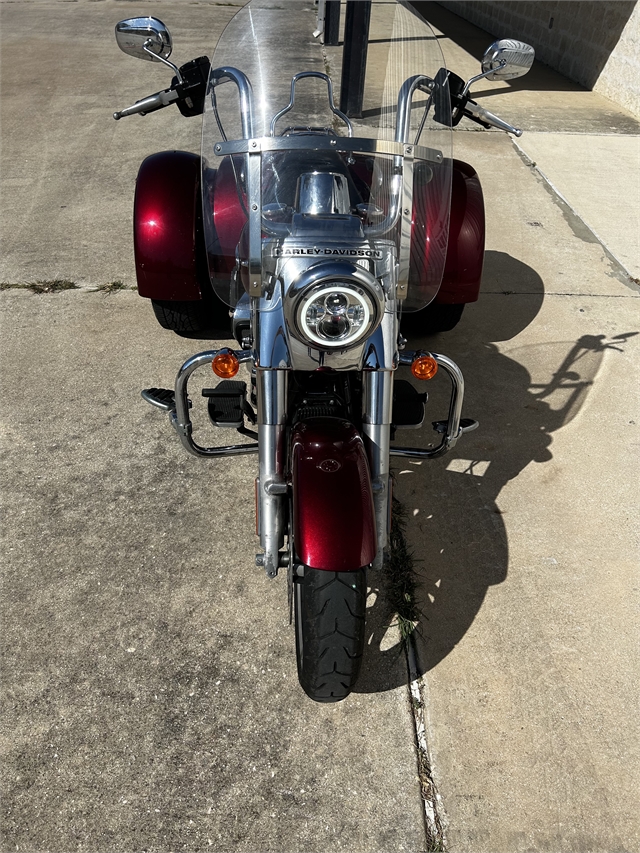

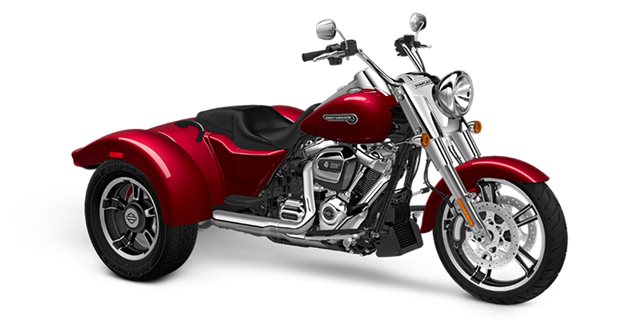

2017 Harley-Davidson Trike Freewheeler

Stock #MC4996
Your Price: $22,594

229 people have recently viewed it.
Request Information
Hi, my name is and I'm interested in this 2017 Harley-Davidson Trike Freewheeler . I'm in the area and you can reach me at or by phone at
  • Status:
    Pre-Owned
  • Vehicle:
    2017 Harley-Davidson Trike Freewheeler
  • VIN:
    1HD1MCC17HB854996
  • Model Number:
    FLRT
  • Mileage:
    6,826 miles
  • Color:
    Velocity Red Sunglo
  • Stock Number:
    MC4996
  • Title:
    Clear
  • Location:
    Javelina Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Dual Hydraulic Disc

ENGINE

  • Bore (in):
    3.94
  • Bore (mm):
    100.1
  • CAN Liters Per Kilometer (Combined):
    5.5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Oil
  • Cylinders:
    2
  • Displacement (cc):
    1753.4
  • Displacement (ci):
    107
  • Engine Brand Name:
    Milwaukee-Eight™ 107
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.37
  • Stroke (mm):
    111
  • Torque (Ft Lbs):
    110.6
  • Torque (Nm):
    150
  • Torque RPM:
    3500
  • US Miles Per Gallon (Combined):
    43
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Body Material:
    Fiberglass
  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    27.5
  • Seat Height (mm):
    698.5
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Independent
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    481.7
  • Dry Weight (lbs):
    1062
  • Engine Displacement to Weight (cc):
    1.65
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    5
  • Ground Clearance (mm):
    127
  • Length (ft):
    8.61
  • Length (ft/ft):
    8
  • Length (ft/in):
    7.3
  • Length (in):
    103.3
  • Length (mm):
    2623.8
  • Storage Capacity (cuft):
    2
  • Storage Capacity (gal):
    12.9
  • Storage Capacity (l):
    56.6
  • Wet Weight (kg):
    497.1
  • Wet Weight (lbs):
    1096
  • Wheelbase (in):
    65.7
  • Wheelbase (mm):
    1668.8

TRANSMISSION

  • Gear Ratio (1):
    10.534
  • Gear Ratio (2):
    7.302
  • Gear Ratio (3):
    5.423
  • Gear Ratio (4):
    4.392
  • Gear Ratio (5):
    3.741
  • Gear Ratio (6):
    3.157
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Reverse:
    Yes
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Multi-Tread™ 130/60 R19 61H
  • Front Tire Aspect Ratio:
    60
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Dunlop® Multi-Tread™ 205/65 R15
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Width:
    205
  • Rear Wheel Diameter:
    15
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
